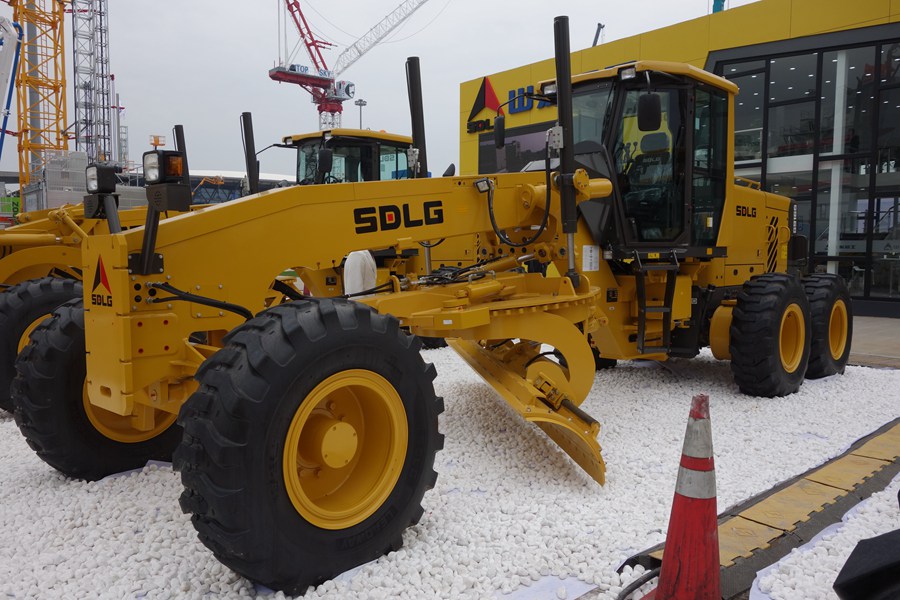

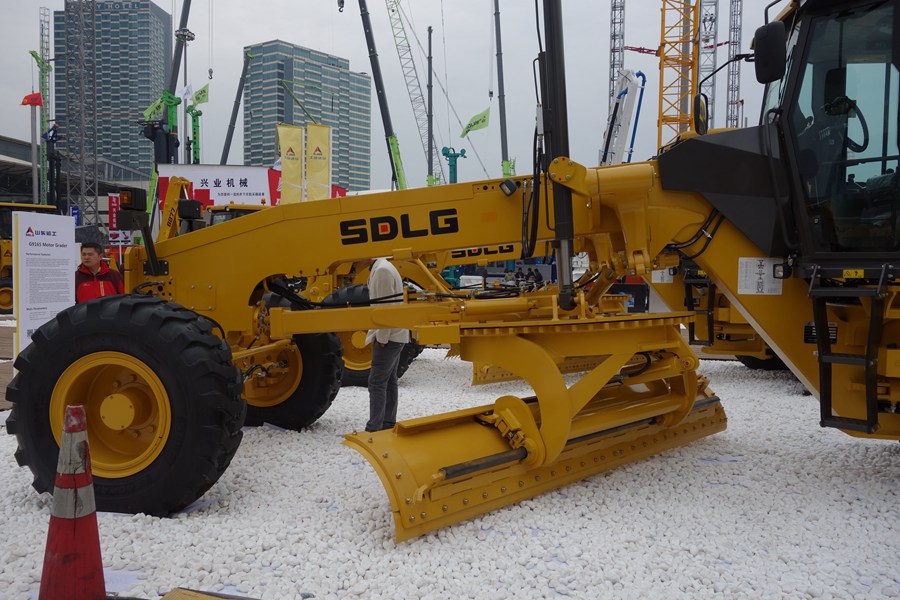

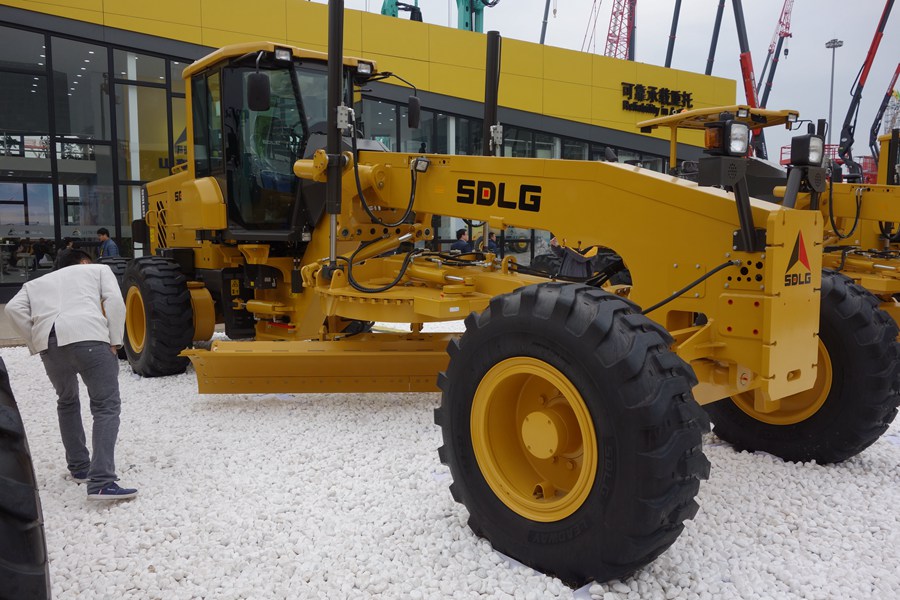

SDLG G9165F Motor Grader

SDLG G9165F Motor Grader

G9165F is a product of high speed, high efficiency, high accuracy and multiple purposes developed by SDLG on the European advanced technology, can be used for ground leveling and grooving, scraping slope, bulldozing, ploughing snow, loosening, compacting, material arrangement and mixing works, and is widely used in construction operating condition of road, airport, defence engineering, mine construction, road construction, water conservancy construction and farmland Improvement and so on.


0.00
0.00


G9165F is a product of high speed, high efficiency, high accuracy and multiple purposes developed by SDLG on the European advanced technology, can be used for ground leveling and grooving, scraping slope, bulldozing, ploughing snow, loosening, compacting, material arrangement and mixing works, and is widely used in construction operating condition of road, airport, defence engineering, mine construction, road construction, water conservancy construction and farmland Improvement and so on.


ItemSpecifications
Operation mass of complete  machine
14600kg
Dimensions(LXHXH)
8975X2710X3240MM
Max.angle of inclination of front wheel
±18°
Max.swing angle of front wheel
±16°
Max.steering angle of front wheel
±50°
Steering angle of frame articulation
±23°
Cutter diameter
1626mm
Cutter specifications(LXHXT)
3658X635X25mm
Rotation angle of balde
360°
Ground clearance of balde
445mm
Cutting depth of blade
787mm
Sliding range of balde
673mm
Max.traction(f=0.75)
75kn
Engine power
129kw
Max.speed(forwader/backwarder)
40/30km/h
