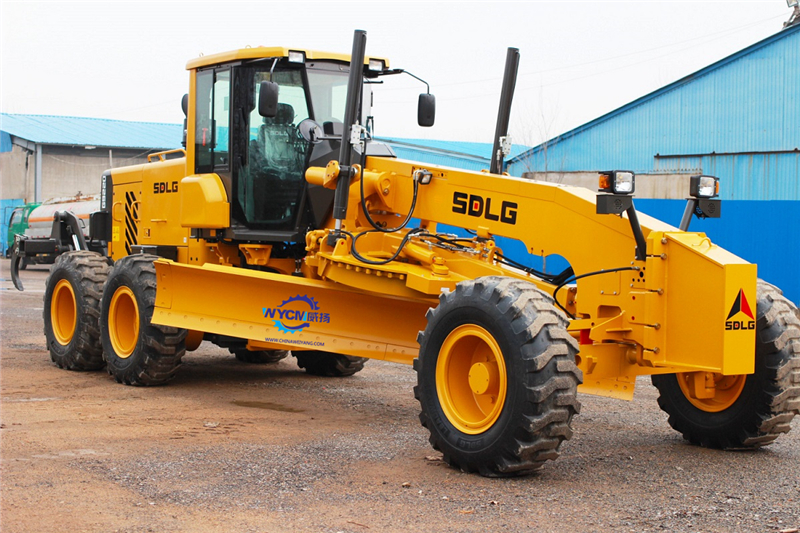

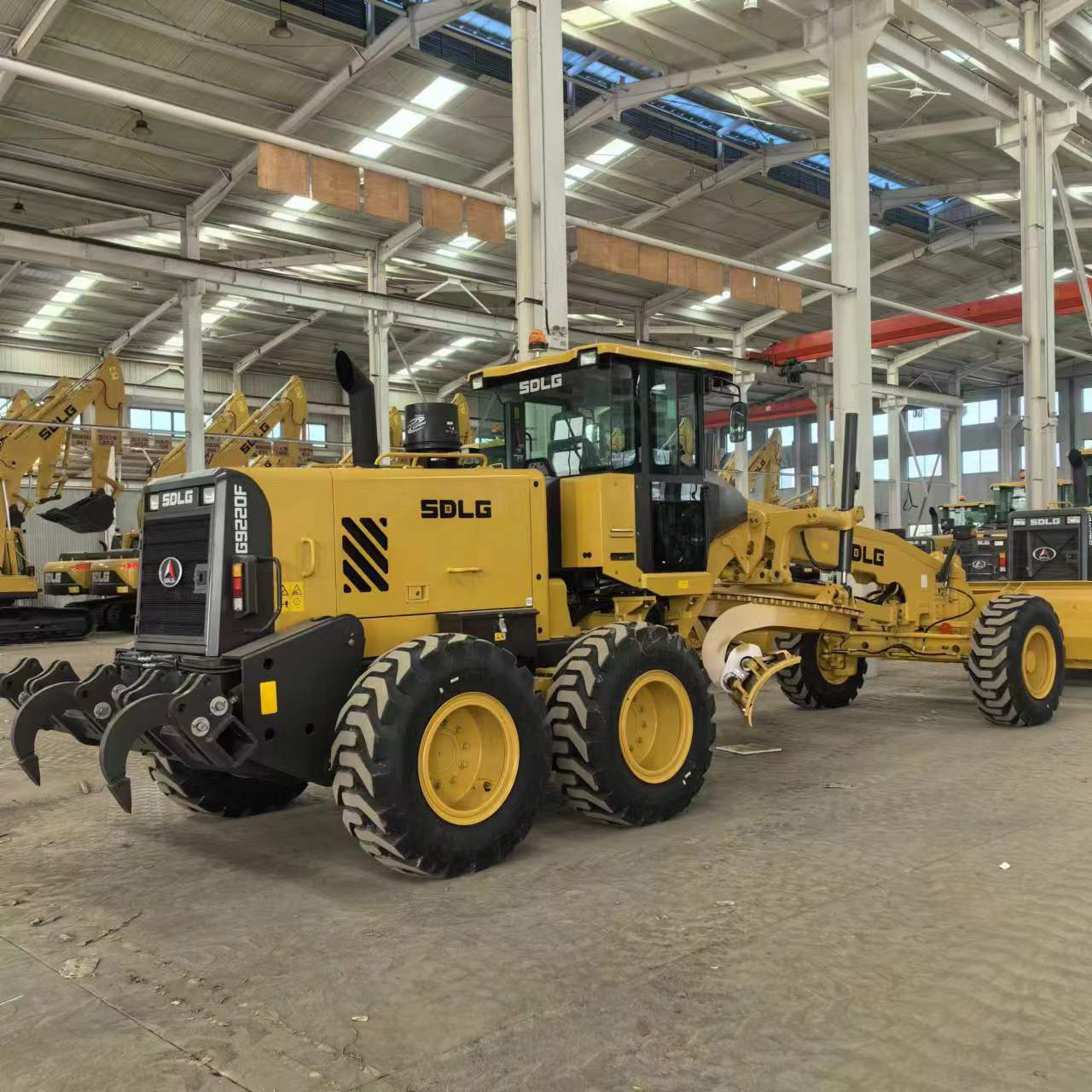

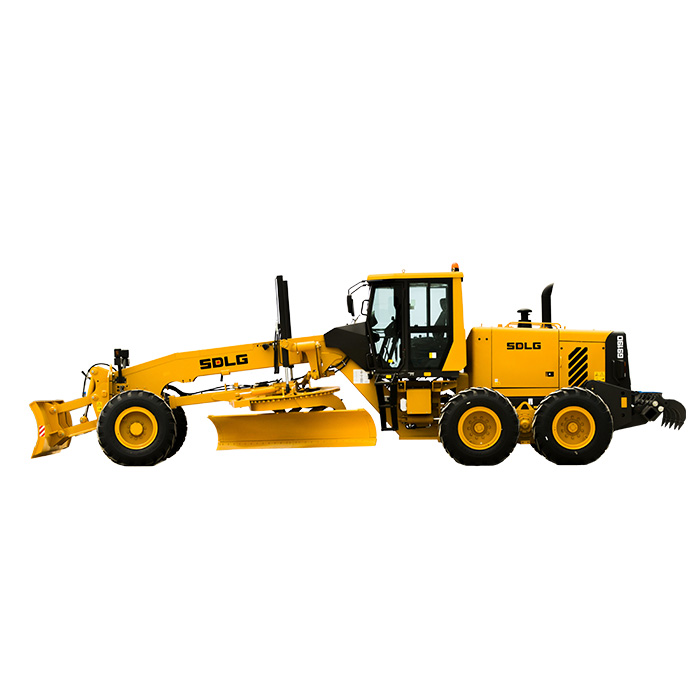

G9220F grader features excellent performance,fashionable design, flexible and accurate
movement and convenient operation. It is suitable for constructing subgrade and pavement, building slope and ditching, and also is good at mixing road mixture, removing snow, pushing loose material and carrying out maintenance work on dirt road and gravel road.
G9220F grader features excellent performance,fashionable design, flexible and accurate
movement and convenient operation. It is suitable for constructing subgrade and pavement, building slope and ditching, and also is good at mixing road mixture, removing snow, pushing loose material and carrying out maintenance work on dirt road and gravel road.
Item | Specifications |
Operation mass of complete machine | 16500kg |
Dimensions(LXHXH) | 9235X2710X3240MM |
Max.angle of inclination of front wheel | ±18° |
Max.swing angle of front wheel | ±16° |
Max.steering angle of front wheel | ±50° |
Steering angle of frame articulation | ±23° |
Cutter diameter | 1626mm |
Cutter specifications(LXHXT) | 4267X635X25mm |
Rotation angle of balde | 360° |
Ground clearance of balde | 445mm |
Cutting depth of blade | 787mm |
Sliding range of balde | 673mm |
Max.traction(f=0.75) | 87kn |
Engine power | 165kw |
Max.speed(forwader/backwarder) | 39/25.5km/h |
