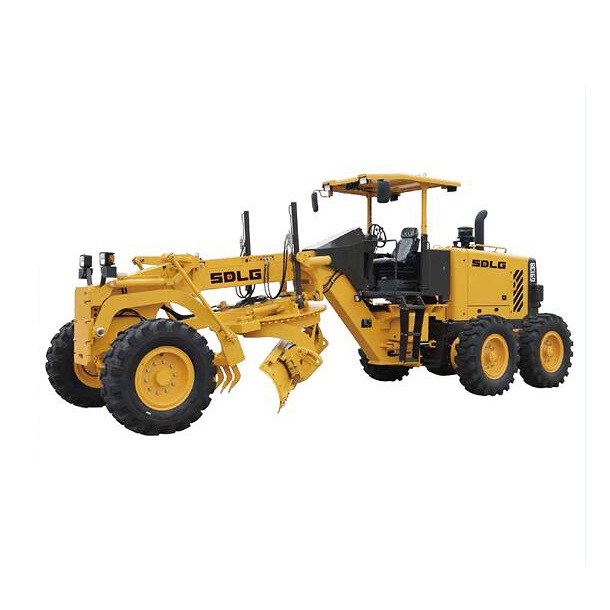

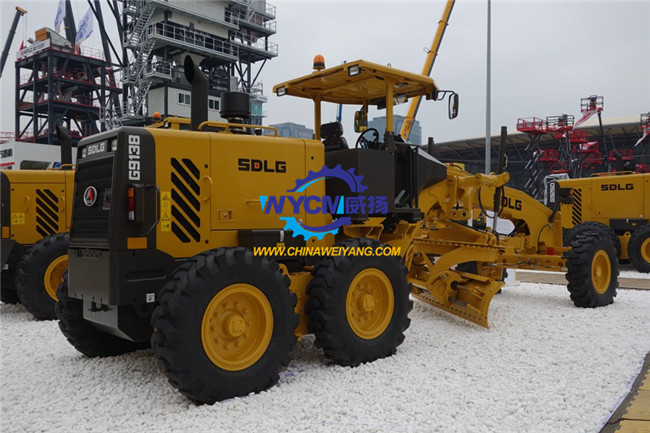

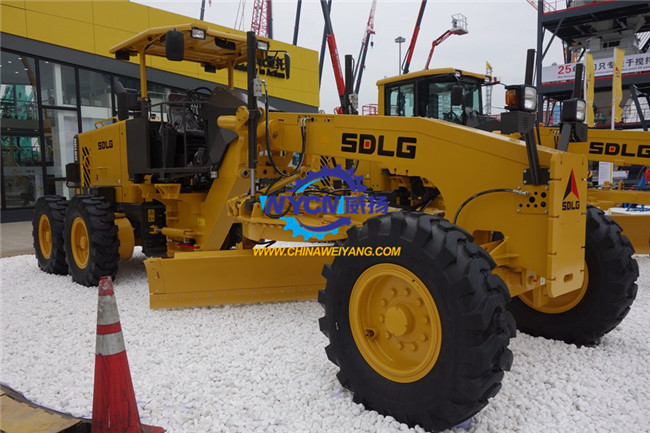

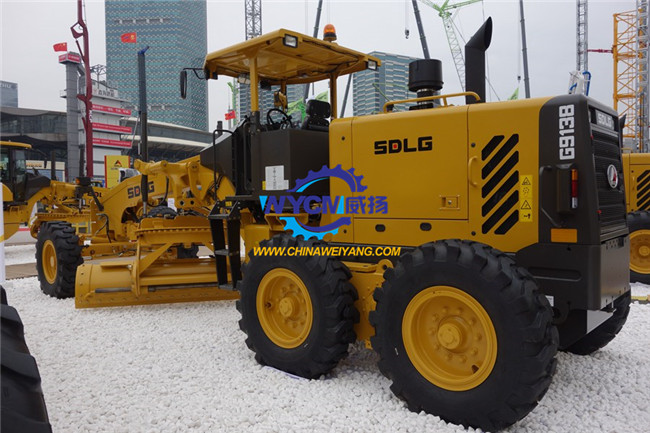

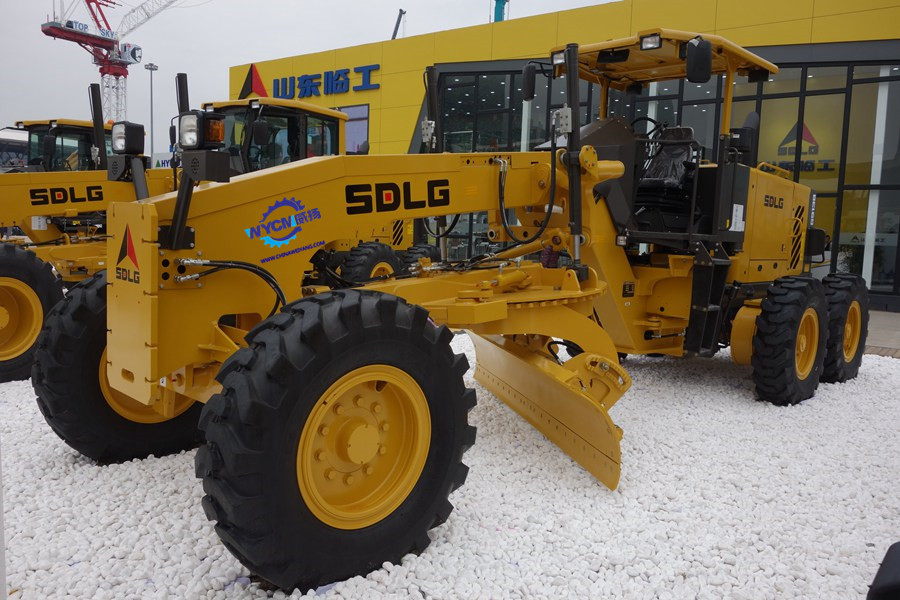

SDLG G9138F Motor Grader

SDLG G9138F Motor Grader

G9138F is a product of high speed, high efficiency, high accuracy and multiple purposes developed by SDLG on the European advanced technology, can be used for ground leveling and grooving, scraping slope, bulldozing, ploughing snow, loosening, compacting, material arrangement and mixing works, and is widely used in construction operating condition of road, airport, defence engineering, mine construction, road construction, water conservancy construction and farmland Improvement and so on.


0.00
0.00


G9138F is a product of high speed, high efficiency, high accuracy and multiple purposes developed by SDLG on the European advanced technology, can be used for ground leveling and grooving, scraping slope, bulldozing, ploughing snow, loosening, compacting, material arrangement and mixing works, and is widely used in construction operating condition of road, airport, defence engineering, mine construction, road construction, water conservancy construction and farmland Improvement and so on.


Item Specifications
Operation mass of complete  machine
12100kg
Dimensions(LXHXH)
8120X2410X3200MM
Max.angle of inclination of front wheel
±18°
Max.swing angle of front wheel
±16°
Max.steering angle of front wheel
±50°
Steering angle of frame articulation
±23°
Cutter diameter
1375mm
Cutter specifications(LXHXT)
3048X565X16mm
Rotation angle of balde
360°
Ground clearance of axles(F/R)
590/400mm
Cutting depth of blade
575mm
Sliding range of balde
500mm
Max.traction(f=0.9)
75.4kn
Engine power
105kw
Max.speed(forwader/backwarder)
34/24km/h
