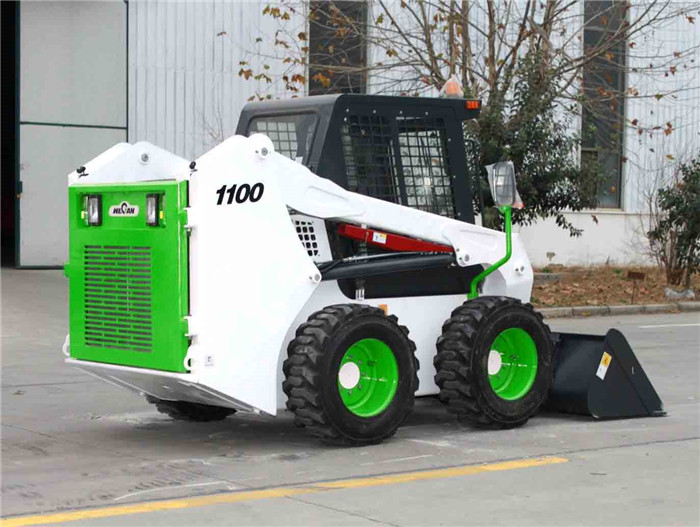

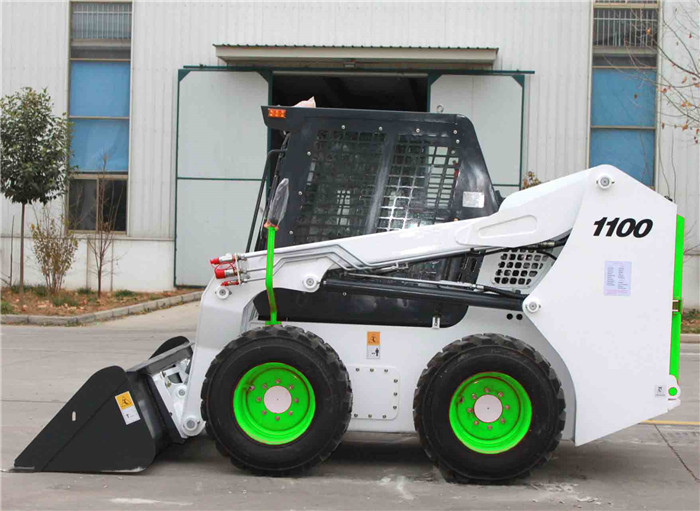

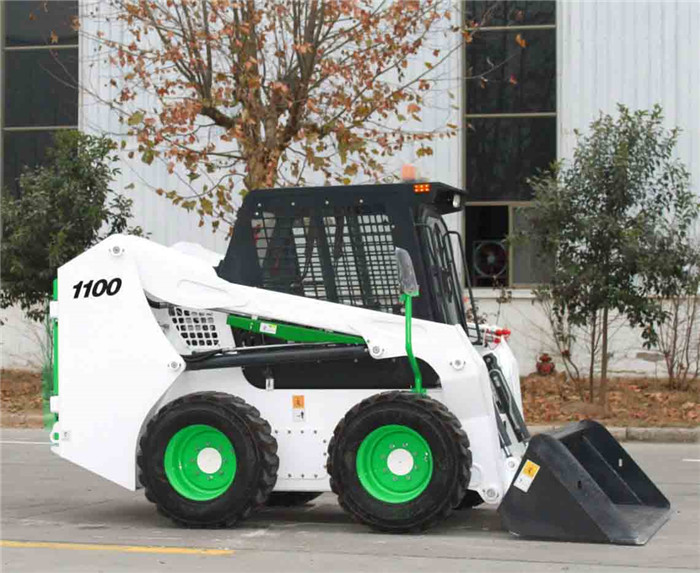

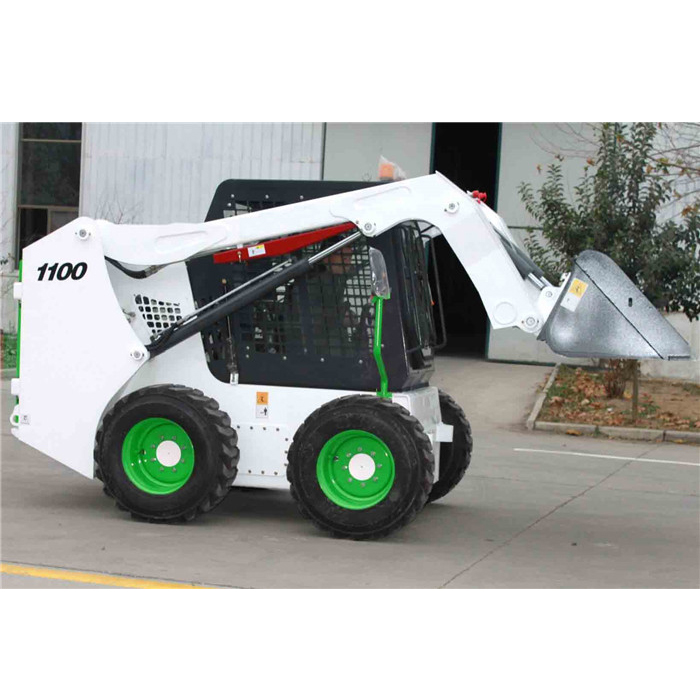

1100 Skid Steer Loader

1100 Skid Steer Loader

Good performance with competitive price

Turn within its own length

Excellent reach and lift height for truck loading (radial direction)

More than 20 series attachments for option: pallet fork, hydraulic hammer, backhoe, sweeper, angle broom, 4 in1 bucket, auger, trencher, tooth bucket and so on.

Attachment can be used with bobcat type skid steer loader

Multifunctional, maneuverability and reliability

0.00
0.00


Good performance with competitive price

Turn within its own length

Excellent reach and lift height for truck loading (radial direction)

More than 20 series attachments for option: pallet fork, hydraulic hammer, backhoe, sweeper, angle broom, 4 in1 bucket, auger, trencher, tooth bucket and so on.

Attachment can be used with bobcat type skid steer loader

Multifunctional, maneuverability and reliability

Model 1100
Rated capacity 1100kgs
Rated flow 62.5L/min
High flow 128L/min
Discharge height 2465mm
Discharge distance 610mm
Power type Diesel engine
Engine model Xinchai A498BZG
Power/Speed 55kw/2500rpm
Displacement 3.17L
No.of cylinder 4
Control type Hydraulic joystick
Over length with bucket 3623mm
Over length without bucket 2833mm
Over width with bucket 1980mm
Over width without bucket 1850mm
Over height 2028mm
Max.operating height 4086mm
Front turning radius 2210mm
Front turing radius without attachment 1350mm
Rear turning radius 1786mm
Wheel base 1150mm
Tread 1506mm
Max.speed 22.4km/h
Max.load 2200kgs
Lifting type Vertical
Bucket capacity 0.55cmm
Total weight with bucket 3540kgs
Tubeless tire size 12-16.5
