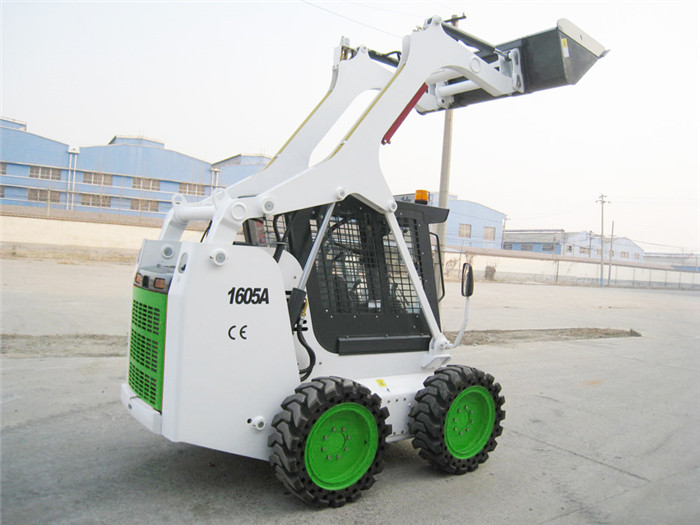

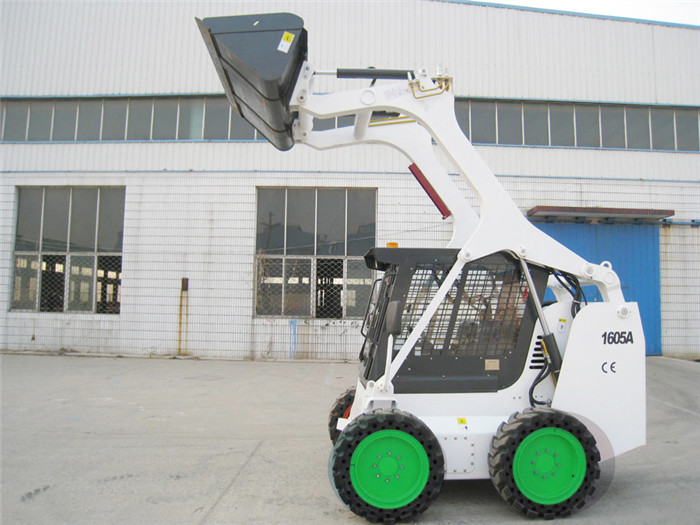

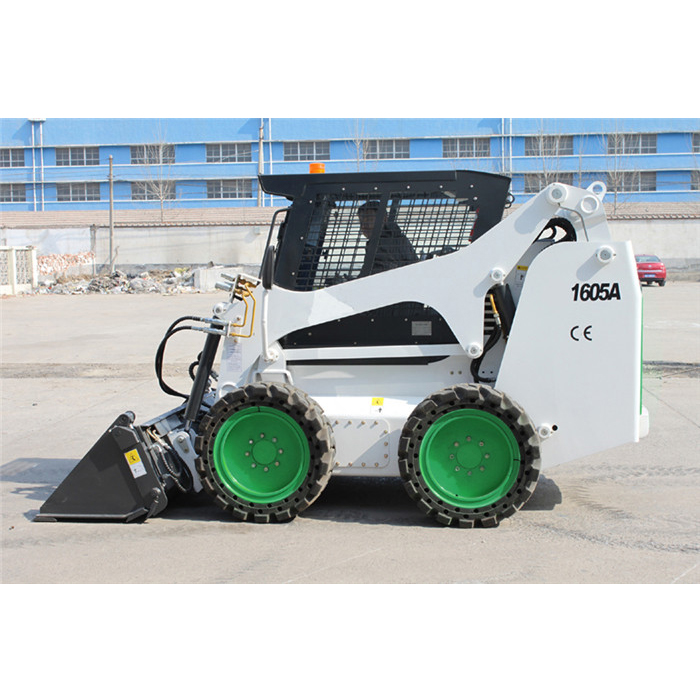

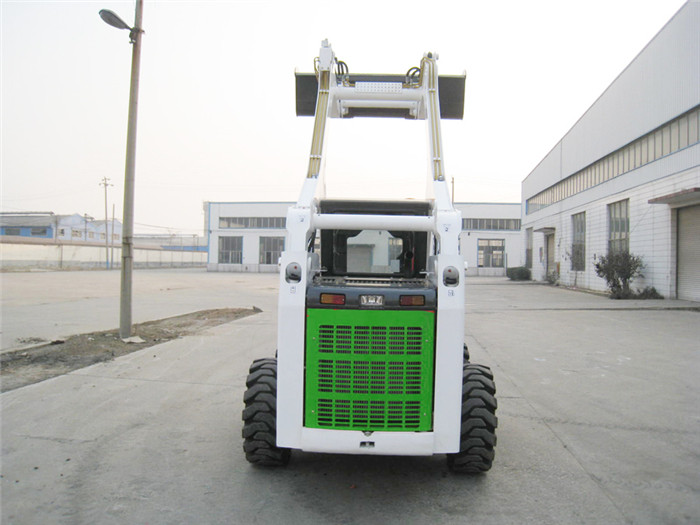

1605A Skid Steer Loader

1605A Skid Steer Loader

Good performance with competitive price

Turn within its own length

Excellent reach and lift height for truck loading (radial direction)

More than 20 series attachments for option: pallet fork, hydraulic hammer,backhoe, sweeper, angle broom, 4 in 1 bucket, auger, trencher,tooth bucket and so on.

Attachment can be used with bobcat type skid steer loader

World famous hydraulic system from Germany (Rexroth pump)

Germany Rexroth brand parts( Motor, Control Valve, Hydraulic Joystick )

EURO III UK perking egnine

Multifunctional, maneuverability and reliability


0.00
0.00


Good performance with competitive price

Turn within its own length

Excellent reach and lift height for truck loading (radial direction)

More than 20 series attachments for option: pallet fork, hydraulic hammer,backhoe, sweeper, angle broom, 4 in 1 bucket, auger, trencher,tooth bucket and so on.

Attachment can be used with bobcat type skid steer loader

World famous hydraulic system from Germany (Rexroth pump)

Germany Rexroth brand parts( Motor, Control Valve, Hydraulic Joystick )

EURO III UK perking egnine

Multifunctional, maneuverability and reliability


Model 1605A
Rated capacity 1600kgs
Rated flow 88L/min
High flow 158L/min
Discharge height 2540mm
Discharge distance 850mm
Power type Diesel engine
Engine model Perking1104D-44T
Power/Speed 74.5kw/2200rpm
Displacement 4.4L
No.of cylinder 4
Control type Hydraulic joystick
Over length with bucket 3666mm
Over length without bucket 2878mm
Over width with bucket 1980mm
Over width without bucket 1864mm
Over height 2080mm
Max.operating height 4234mm
Front turning radius 2200mm
Front turing radius without attachment 1540mm
Rear turning radius 1710mm
Wheel base 1218mm
Tread 1530mm
Max.speed 10.2/20.4km/h
Max.load 3200kgs
Lifting type Vertical
Bucket capacity 0.55cmm
Total weight with bucket 4260kgs
Tubeless tire size 12-16.5
