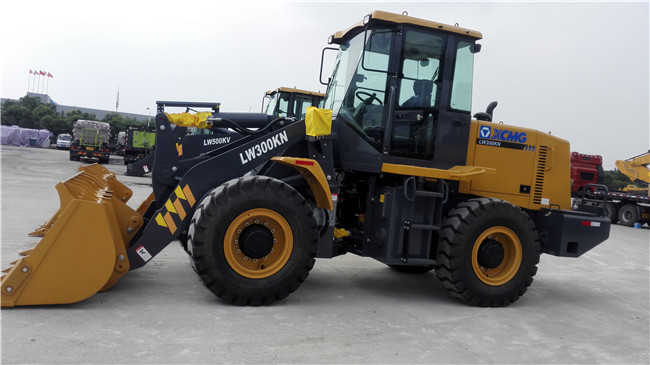

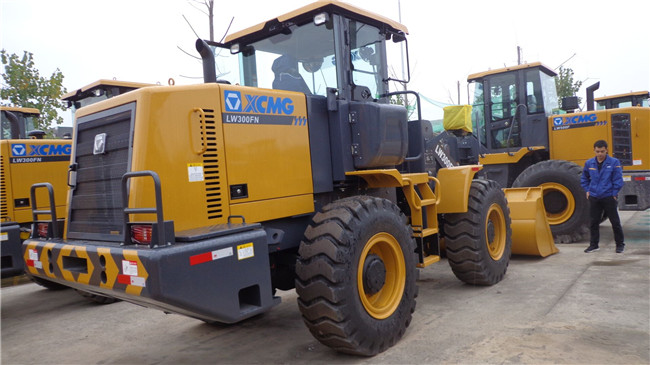

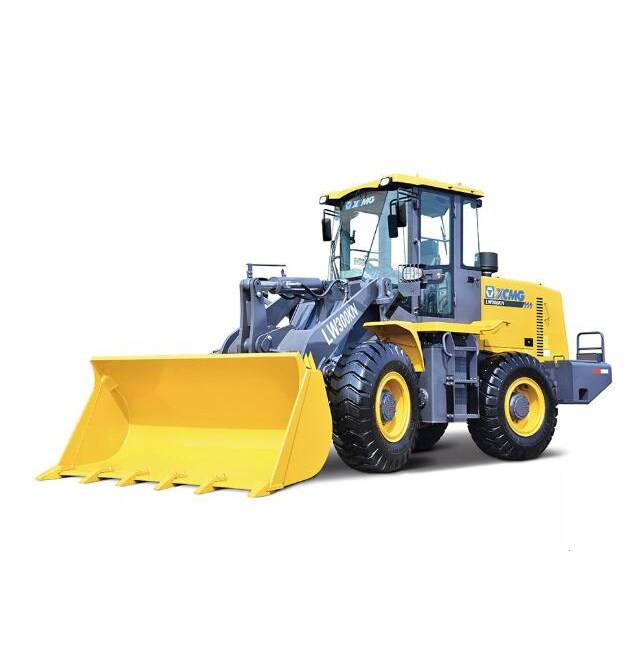

LW300KN XCMG Wheel Loader

LW300KN XCMG Wheel Loader

It features high efficiency, energy-saving, and strong power.

The three-element torque converter and the fixed shaft power shift transmission feature high maturity and reliability.

The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites.

The bucket is made of high strength material to realize high wear and impact resistance.

The diversified configurations and complete attachments adapt to the construction needs in different regions and under different working conditions.

The optional A/C and the sound insulation and noise reduction measure build elaborately a comfortable operating environment.

0.00
0.00


It features high efficiency, energy-saving, and strong power.

The three-element torque converter and the fixed shaft power shift transmission feature high maturity and reliability.

The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites.

The bucket is made of high strength material to realize high wear and impact resistance.

The diversified configurations and complete attachments adapt to the construction needs in different regions and under different working conditions.

The optional A/C and the sound insulation and noise reduction measure build elaborately a comfortable operating environment.

Item Specifications
Rated operating load
3000Kg
Bucket capacity
1.5~2.5m³
Machine weight
10900±200Kg
Dump clearance at maximum lift
2770~3260Mm
Reach at maximum lift
1010~1210mm
Wheel base
2900mm
Tread
1850mm
Height of hinge at maximum lift height
3830mm
Working height(fully lifted)
4870mm
Max.breakout force
130Kn
Max.horse power
95Kn
Hydraulic cycle time-raise
5.5s
Total hydraulic cycle time
10s
Min. turning radius over tyres
5165mm
Articulation angle
35±1
Gradeability
28°
Tyre size
17.5-25-12PR
L×W×H
7245×2482×3320mm
Engine Model
Weichai
Rated Power/Speed
92/2300 kw/rpm
Fuel Tank
170L
Hydraulic Tank
170L
Travel speed   Ⅰ-gear(F/R)
12/16km/h
Ⅱ-gear(F/R)
38km/h
