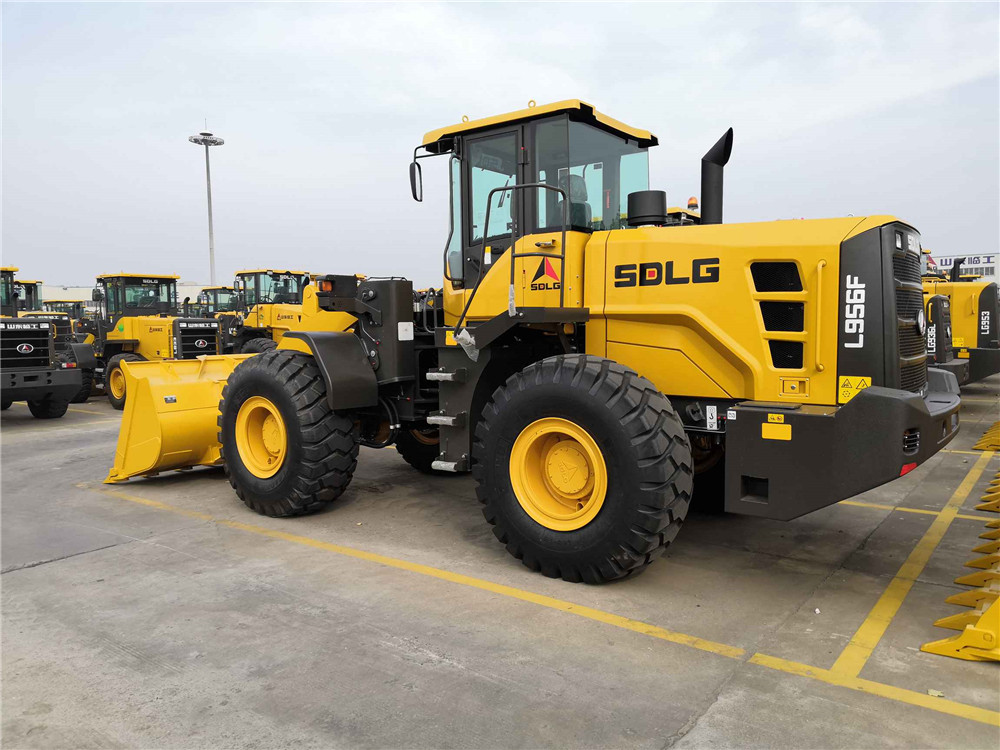

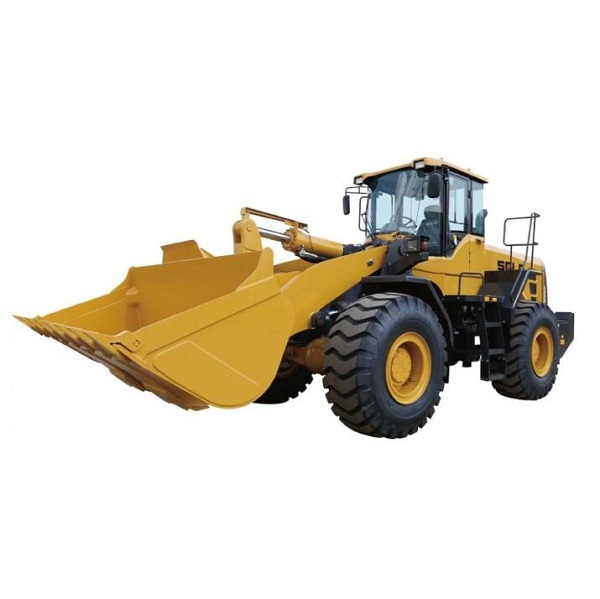

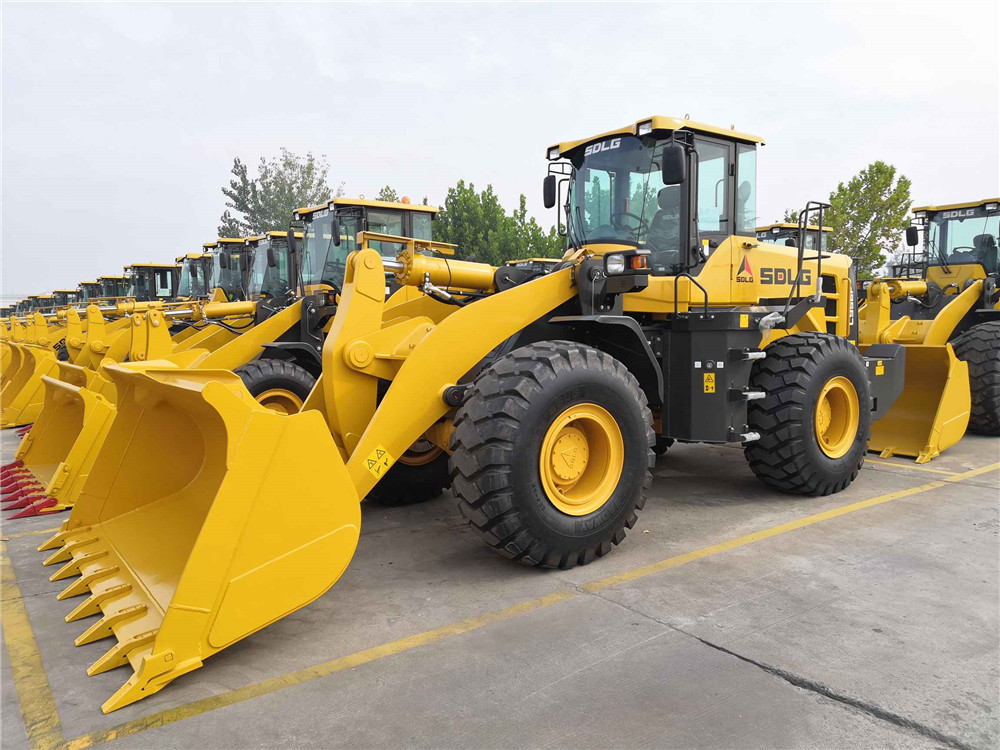

L956F is a long-wheelbase loader designed by SDLG with a next generation of appearance, and combines the energy-saving, reliability and comfort. It has the superior stability and large breakout force, and by virtue of the superior comprehensive performance, it is more suitable for mining and other heavy-duty operations.
L956F is a long-wheelbase loader designed by SDLG with a next generation of appearance, and combines the energy-saving, reliability and comfort. It has the superior stability and large breakout force, and by virtue of the superior comprehensive performance, it is more suitable for mining and other heavy-duty operations.
Item | Specifications |
Operation weight | 17450Kg |
Bucket capacity | 3.0m³ |
Rated load | 5000Kg |
Max.brakeout force | ≥165Kn |
Max.dumping height | 3040Mm |
Dumping distance | 1095Mm |
LxWxH | 8180x3024x3423mm |
Max.tractive force | ≥165Kn |
Max.climbing angel | 28° |
Total time | ≤10S |
Steering angel | 38° |
Tipping load | ≥110Kn |
Engine model | Weichai |
Rated power | 162Kw |
