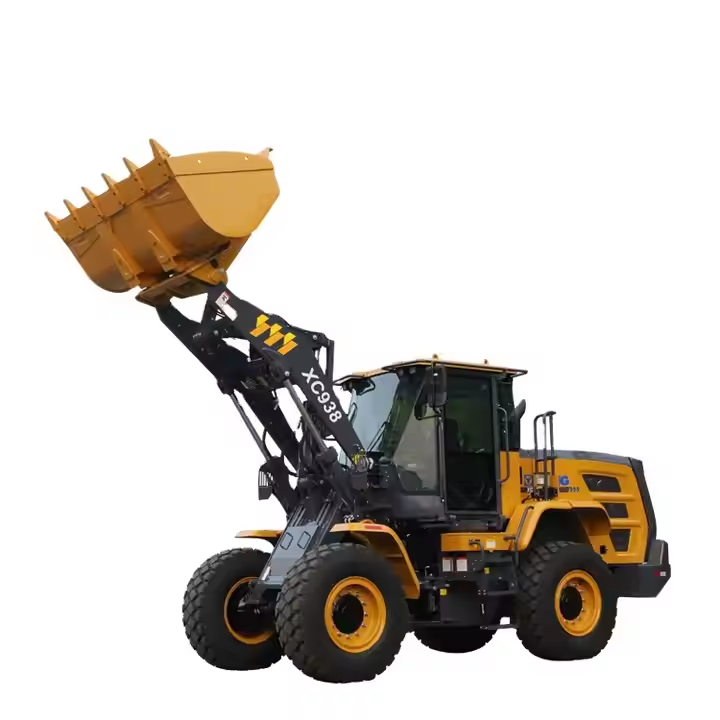

XC938 wheel loader is a new generation of loader. XCMG makes full use of Group's intermational R&Dplatform to integrate global technology research and development resources to create internationaladvanced and completely independent intellectual property rights. This model is powerful, rugged.energy efficient, safe and comfortable, and easy to maintain. lt is the preferred production equipmentfor various construction projects plants and municipal construction.
XC938 wheel loader is a new generation of loader. XCMG makes full use of Group's intermational R&Dplatform to integrate global technology research and development resources to create internationaladvanced and completely independent intellectual property rights. This model is powerful, rugged.energy efficient, safe and comfortable, and easy to maintain. lt is the preferred production equipmentfor various construction projects plants and municipal construction.
Item | Specifications |
Rated operating load | 3000Kg |
Bucket capacity | 2.1m³ |
Machine weight | 11000Kg |
Dump clearance at maximum lift | 2770~3260Mm |
Reach at maximum lift | 1010~1210mm |
Wheel base | 2900mm |
Tread | 1850mm |
Height of hinge at maximum lift height | 3830mm |
Working height(fully lifted) | 4870mm |
Max.breakout force | 130Kn |
Max.horse power | 95Kn |
Hydraulic cycle time-raise | 5.5s |
Total hydraulic cycle time | 10s |
Min. turning radius over tyres | 5165mm |
Articulation angle | 35±1 |
Gradeability | 28° |
Tyre size | 17.5-25-12PR |
L×W×H | 7705×3405×2482mm |
Engine Model | Weichai |
Rated Power/Speed | 92/2300 kw/rpm |
Fuel Tank | 170L |
Hydraulic Tank | 170L |
Travel speed Ⅰ-gear(F/R) | 12/16km/h |
Ⅱ-gear(F/R) | 38km/h |
