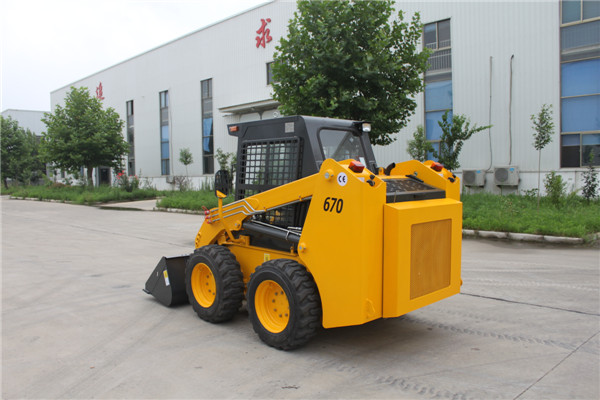

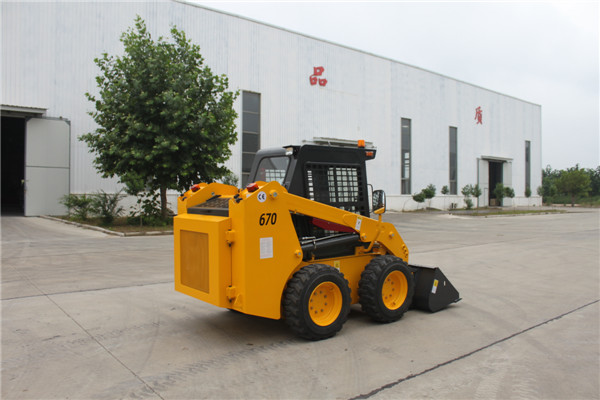

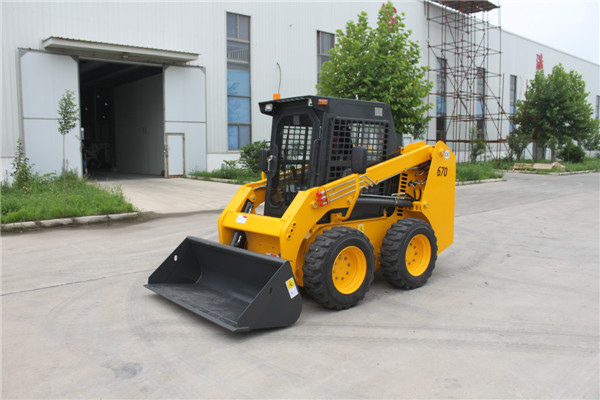

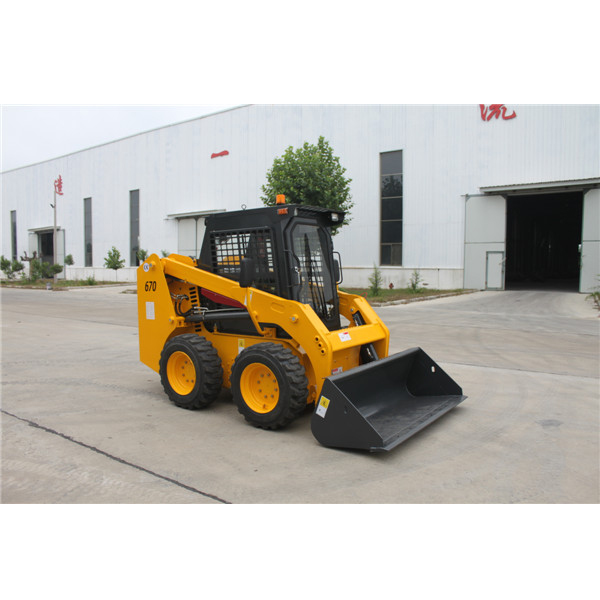

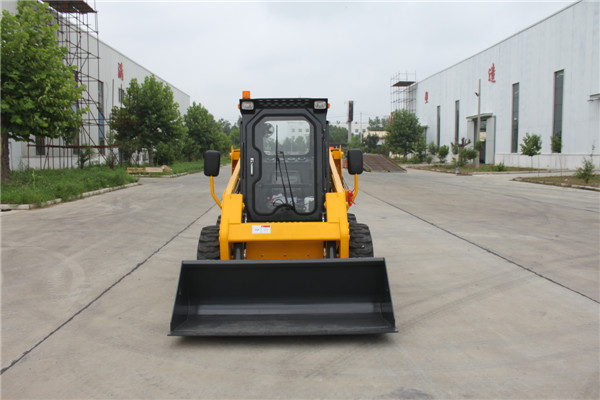

670 Skid Steer Loader
670 Skid Steer Loader

670 Skid Steer Loader

Good performance with competitive price

Turn within its own length

Excellent reach and lift height for truck loading (radial direction)

More than 20 series attachments for option: pallet fork, hydraulic hammer,backhoe, sweeper, angle broom, 4 in 1 bucket, auger, trencher,tooth bucket and so on.

Attachment can be used with bobcat type skid steer loader

World famous hydraulic system from Germany (Rexroth pump)

Germany Rexroth brand parts( Motor, Control Valve, Hydraulic Joystick )

Famous brand engine with EPA or EURO II or III from China and UK

Multifunctional, maneuverability and reliability

0.00
0.00


Good performance with competitive price

Turn within its own length

Excellent reach and lift height for truck loading (radial direction)

More than 20 series attachments for option: pallet fork, hydraulic hammer,backhoe, sweeper, angle broom, 4 in 1 bucket, auger, trencher,tooth bucket and so on.

Attachment can be used with bobcat type skid steer loader

World famous hydraulic system from Germany (Rexroth pump)

Germany Rexroth brand parts( Motor, Control Valve, Hydraulic Joystick )

Famous brand engine with EPA or EURO II or III from China and UK

Multifunctional, maneuverability and reliability

Model 670
Rated capacity 670kgs
Rated flow 73.6L/min
High flow
Discharge height 2188mm
Discharge distance 426mm
Power type Diesel engine
Engine model Xinchai 490PG
Power/Speed 40kw/2100rpm
Displacement 3.17L
No.of cylinder 4
Control type Manual
Over length with bucket 3340mm
Over length without bucket 2625mm
Over width with bucket 1740mm
Over width without bucket 1683mm
Over height 2050mm
Max.operating height 3710mm
Front turning radius 1983mm
Front turing radius without attachment 1188mm
Rear turning radius 1603mm
Wheel base 1044mm
Tread 1392mm
Max.speed 10km/h
Max.load 1340kgs
Lifting type Radius
Bucket capacity 0.45cmm
Total weight with bucket 2770kgs
Tubeless tire size 10-16.5
