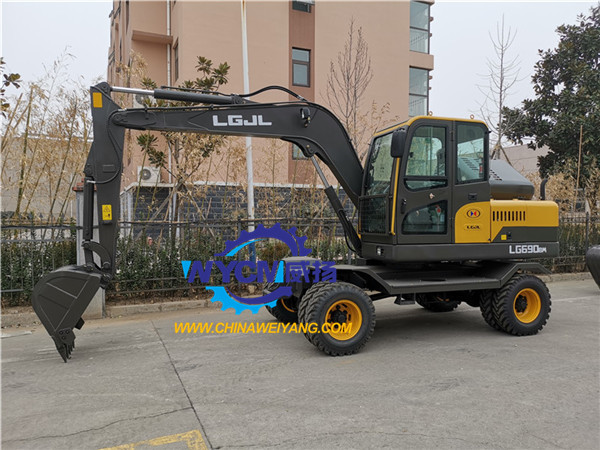

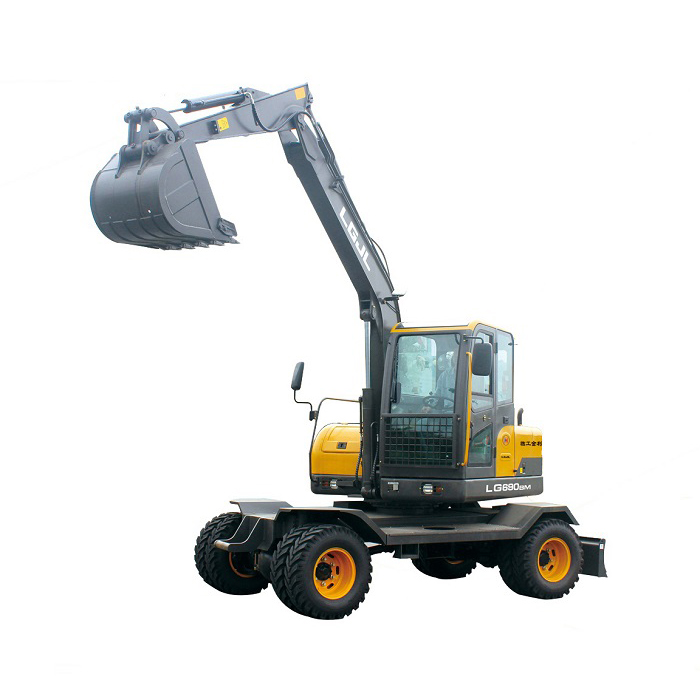

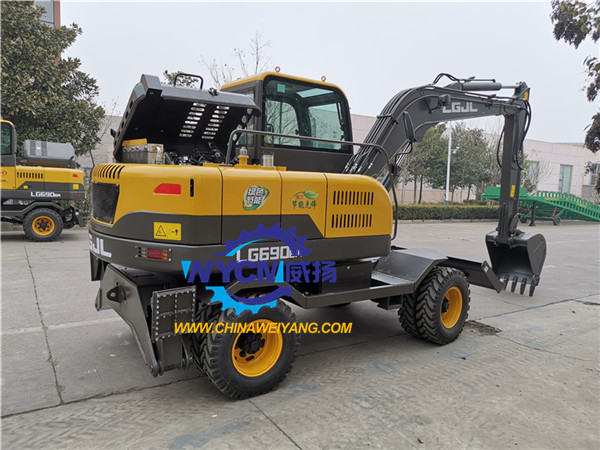

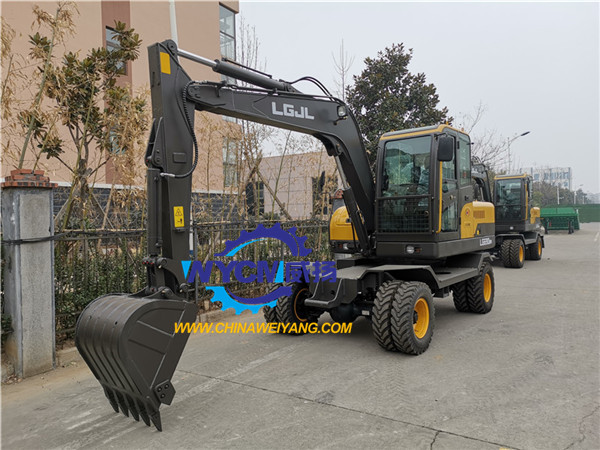

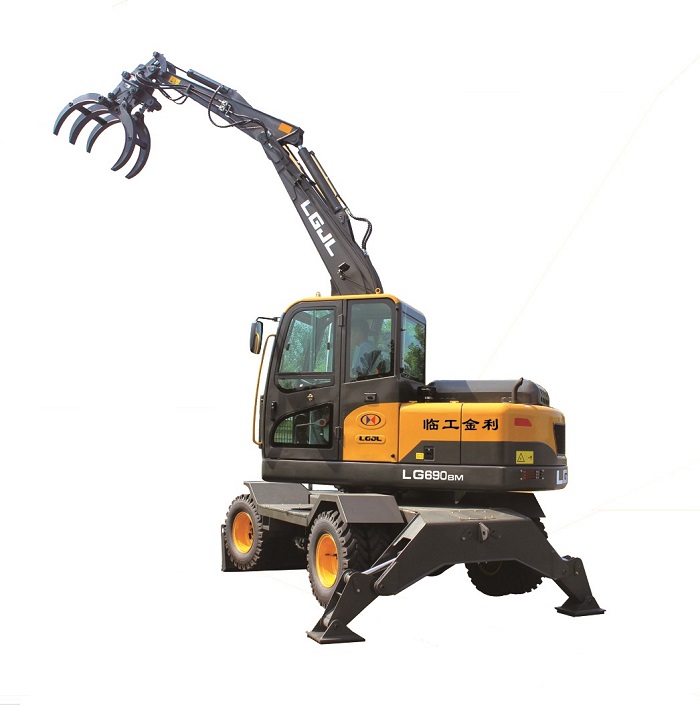

LG690BM Wheel Excavator

LG690BM Wheel Excavator

0.00
0.00

Item Specifications
Operating weight 8300kg
Bucket capacity 0.33m³
Engine model YC45FA65-T300
Power 48kw/2200rpm
Fuel tank 120L
Travel speed 25km/h
Swing speed 12r/min
Gradeability 30°
Bucket digging force 42.03kn
Min ground clearance 370mm
Rear-end swing radium 2130mm
Wheel shaft diameter 2360mm
Max.digging height 7440.5mm
Max.dumping height 5623mm
Max.digging depth 3275mm
Min.swing radius 2180mm
Arm length 2000mm
Boom length 3650mm
Max. digging reach 6925mm
