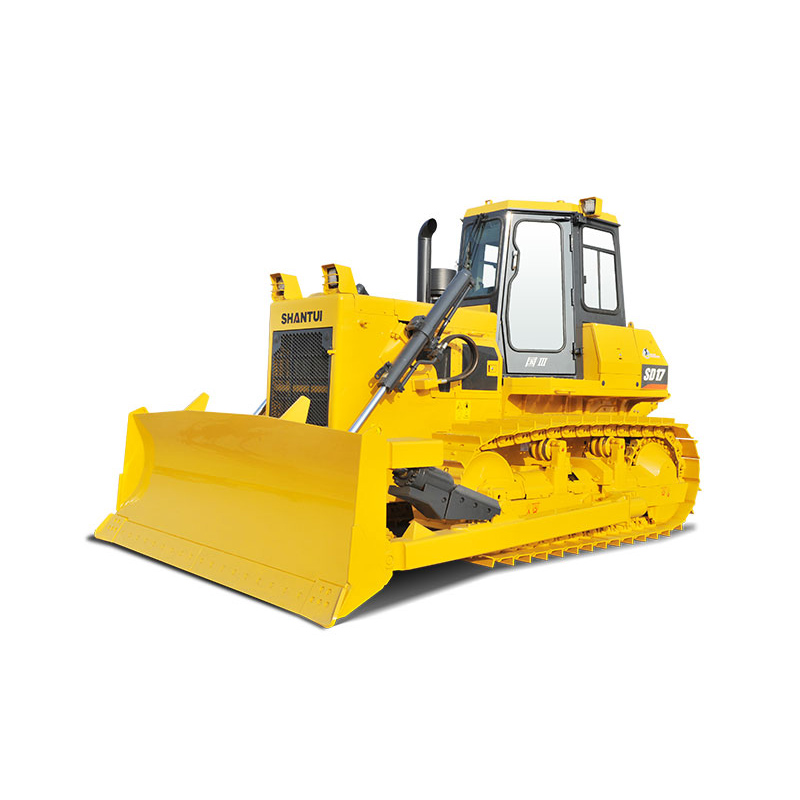

SD17 Shantui Bulldozer

SD17 Shantui Bulldozer

Weichai engine and high-efficiency fuel injection pump features high torque, high performances, high parts universality, and low maintenance cost.

The electronically controlled static pressure drive system equipped can automatically adapt to the load variation and provide best bulldozing speed under different working loads.

The intelligent matching technology can achieve best working efficiency and most reasonable fuel economy, with the composite fuel consumption reduced by 10~15%.

0.00
0.00


Weichai engine and high-efficiency fuel injection pump features high torque, high performances, high parts universality, and low maintenance cost.

The electronically controlled static pressure drive system equipped can automatically adapt to the load variation and provide best bulldozing speed under different working loads.

The intelligent matching technology can achieve best working efficiency and most reasonable fuel economy, with the composite fuel consumption reduced by 10~15%.

Items

Specifications

L × W× H (excluding ripper)(mm)


5250×3420×3080


Engine model

Weichai

Ground pressure(Mpa)

0.064

Blade capacity(m3)

4.4

Operating weight(t)(excluding ripper)

18.9

Net power/rated speed (kW/rpm)

127/2000

Blade type

Semi U-blade
