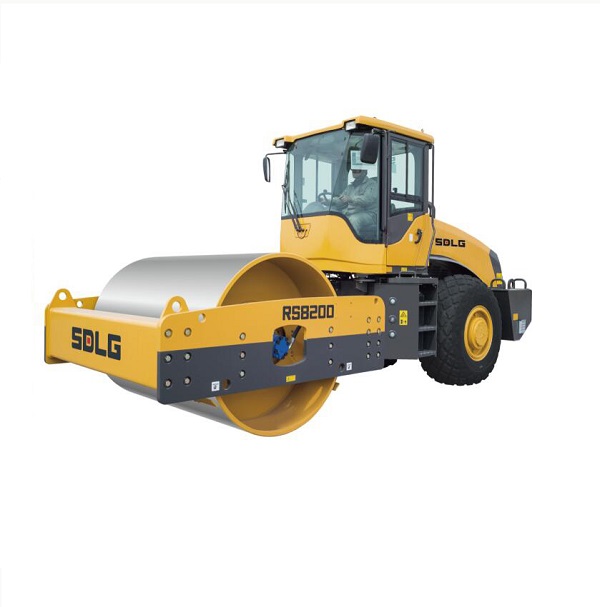

SDLG RS8200H Road Roller

SDLG RS8200H Road Roller

SDLG RS8200H mechanical single drum vibratory road roller,a heavy-duty self-propelled vibratory road roller able to effectively compact various soil layers and rock filling,leads the wheole industry in compacting performance,driving performance,maneuverability,reliability and serviceability etc.,and is the ideal choice for construction of high-grade highways,airports,ports,railways,embankments and industrial sites.

44000.00
43500.00


SDLG RS8200H mechanical single drum vibratory road roller,a heavy-duty self-propelled vibratory road roller able to effectively compact various soil layers and rock filling,leads the wheole industry in compacting performance,driving performance,maneuverability,reliability and serviceability etc.,and is the ideal choice for construction of high-grade highways,airports,ports,railways,embankments and industrial sites.

Item
Specifications
Overall working weight
20000kg
Dimensions(LXHXH)
6370X2320X3185mm
Width/Diameter of vibration wheel
2150/1600mm
Wheel tread
1535mm
Wheel base
3441mm
Min.ground clearance
407mm
Min.turning radius
6600mm
Weight distribution of front/rear wheel
10000kg
Nominal amplitude(high/low)
1.8/1.0mm
Vibration frequency
30Hz
Exciting force(high/low)
338/188kn
Engine model
Weichai
Engine power
118kw
Engine speed
2000r/min
