SDLG RS8160H Road Roller

SDLG RS8160H Road Roller

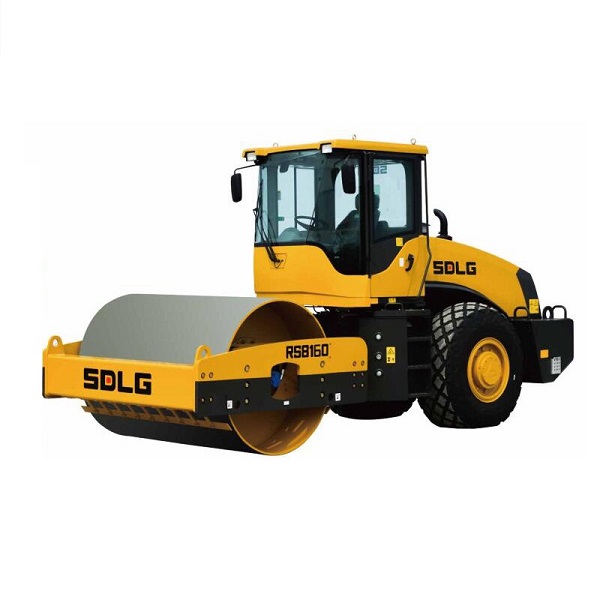

RS8160H mechanical single drum vibratory road roller,a heavy-duty self-propelled vibratory road roller able to effectively compact various soil layers and rock filling,leads the wheole industry in compacting performance,driving performance,maneuverability,reliability and serviceability etc.,and is the ideal choice for construction of high-grade highways,airports,ports,railways,embankments and industrial sites.

36600.00
36400.00


RS8160H mechanical single drum vibratory road roller,a heavy-duty self-propelled vibratory road roller able to effectively compact various soil layers and rock filling,leads the wheole industry in compacting performance,driving performance,maneuverability,reliability and serviceability etc.,and is the ideal choice for construction of high-grade highways,airports,ports,railways,embankments and industrial sites.

Item
Specifications
Overall working weight
16000kg
Dimensions(LXHXH)
6113X2300X3140mm
Width/Diameter of vibration wheel
2130/1500mm
Wheel tread
1535mm
Wheel base
3303mm
Min.ground clearance
350mm
Min.turning radius
6400mm
Weight distribution of front/rear wheel
8000kg
Nominal amplitude(high/low)
1.8/1.0mm
Vibration frequency
30Hz
Exciting force(high/low)
261/145kn
Engine model
Weichai
Engine power
118kw
Engine speed
2000r/min
