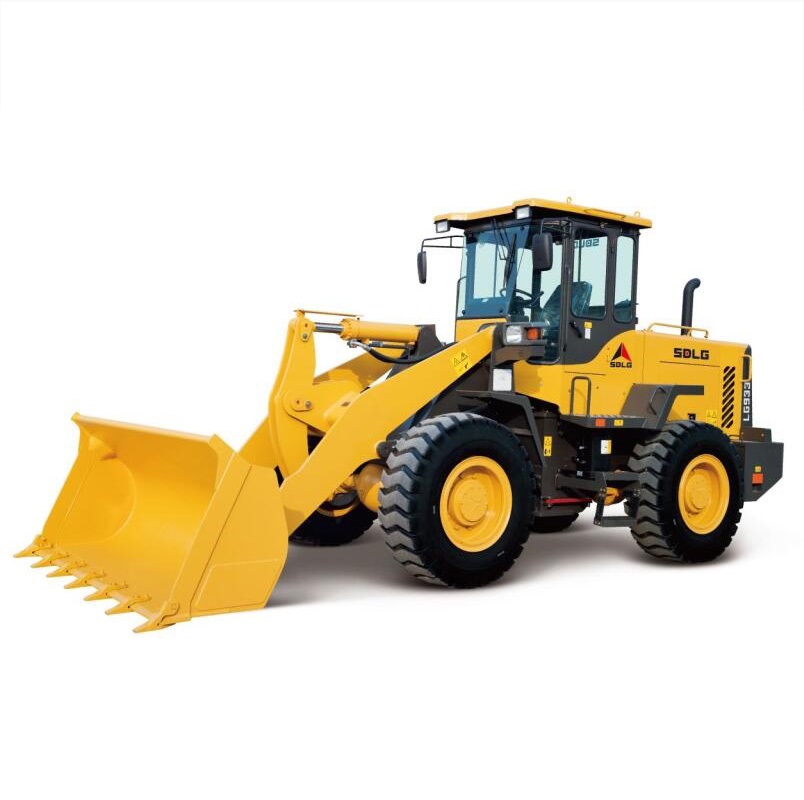

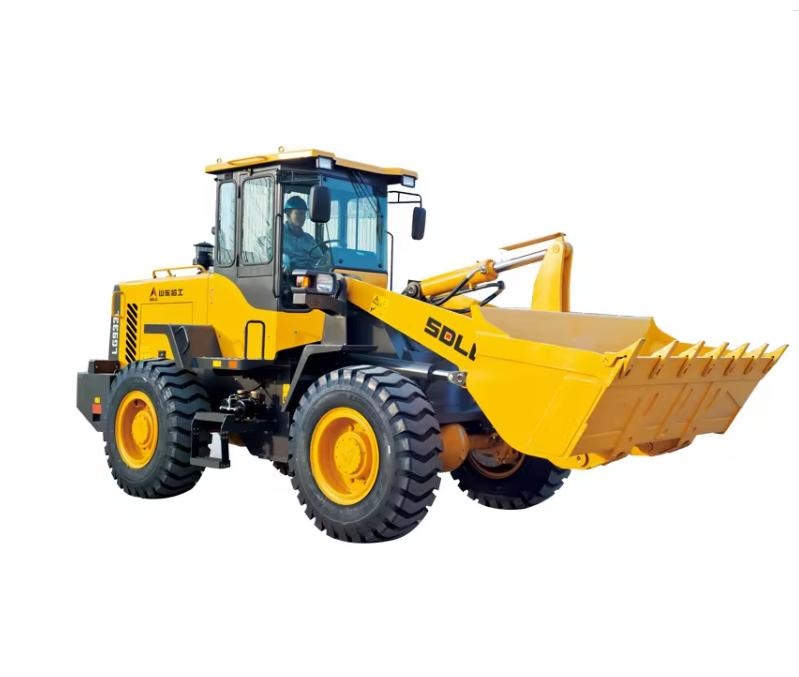

L933F Wheel Loader

L933F Wheel Loader

L933F is suitable for bulk materials，with short base, high cost performance. The entire machine is of large breakout force, small turning radius, high operating efficiency, flexible to operate and is widely used in harbor, building site, aggregate plant, timber yard and etc.

0.00
0.00


L933F is suitable for bulk materials，with short base, high cost performance. The entire machine is of large breakout force, small turning radius, high operating efficiency, flexible to operate and is widely used in harbor, building site, aggregate plant, timber yard and etc.

Overall dimension
L*W*H
6970*2520*3240mm
Wheel base
2700mm
Min. ground clearance
375mm
Max. dumping height
2950mm
Lifting height
3790mm
Dumping distance
1050mm
Dumping angle
45°
wheel tread
1865mm
steering angle
36°
horizontal crossing radius
5945mm
Min. turning radius
5120mm
Overall parameters
Backet capacity
1.8m3(1.5-3.0)
Rated load
3000kg
operating weight
10110kg
Max. tractive force
96kN
Max. breakout force
96kN
Tipping load
60kN
Engine
Model
WP6G125E23
Type
watercooled, four-stroke, Inline
Rated power
92kW
Rated speed
2300r/min
Engine displacement
6750ml
Max. torque
500N.m
Emission standard
GB 20891-2007(China Phase II)
Min. fuel-consume ratio
215g/kw.h
Transmission system
Torgue converter
single-stage three-element hydraulic torque converter
Transmission type
Fixed shaft power shift
Gears
Forward 4 reverse 2
Hydraulic system of working device
Type
Mechanical manual control
total time
9.0s
Brake system
Service brake type
Air over hydraulic disc type
Parking brake type
Manual, caliper disc type
Steering system
Type
Load sensing full hydraulic articulated steering
System pressure
14 Mpa
Fill capacity
Fuel
140L
Hydraulic oil
130L
Engine
14L
Transmission
45L
Drive axle
2X18L
Braking system

4L
