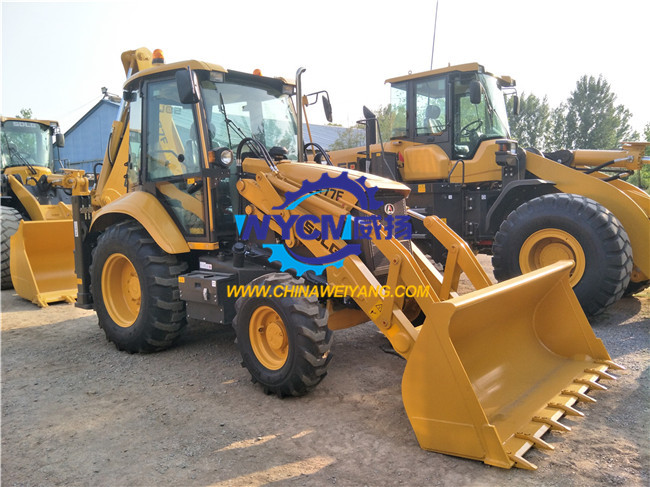

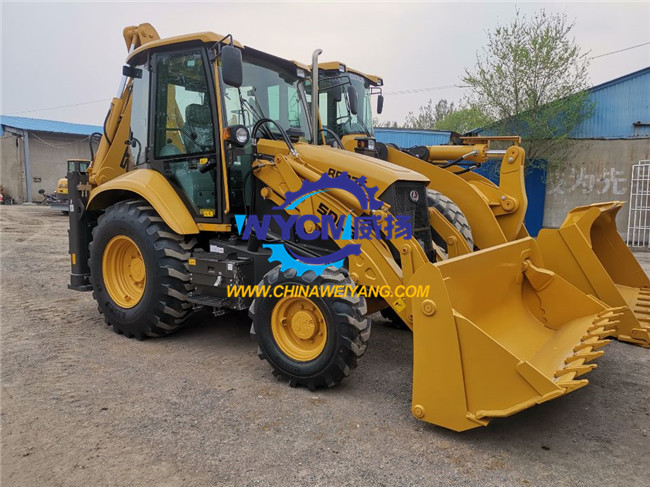

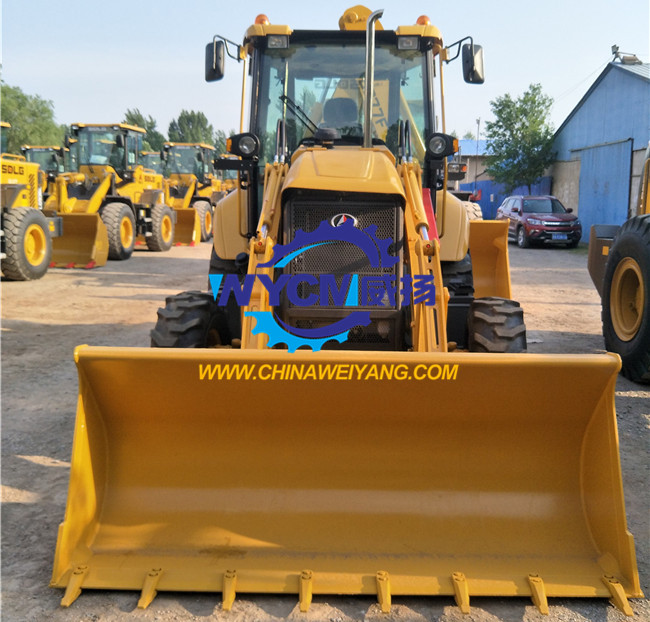

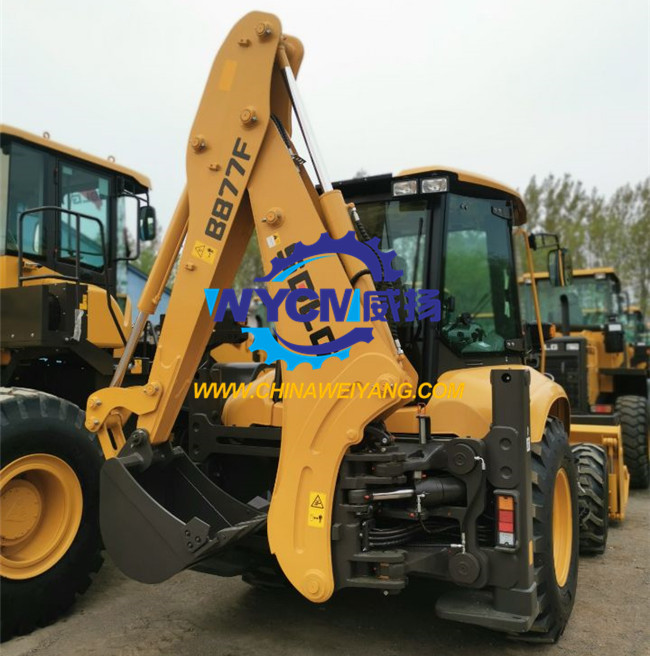

B877F is a new design of cost-effective small multi-function machinery, widely used in urban and rural highway construction and maintenance , cablecasting , electricity and the airport project, municipal construction, amountain stone and other building construction engineering.
B877F is a new design of cost-effective small multi-function machinery, widely used in urban and rural highway construction and maintenance , cablecasting , electricity and the airport project, municipal construction, amountain stone and other building construction engineering.
Item | Specifications |
Operating weight | 8000~8300Kg |
Dimensions(LXWXH) | 5917×2350×3608mm |
Loading bucket | 1.0 m3 |
Digging bucket | 0.18 m3 |
Rate load | 1800 Kg |
Breakout force | 82 KN |
Max.dig force | 60 KN |
Engine Model | Yuchai |
Engine power | 70 kW |
Max.dig | 60 KN |
Max.digging depth | 4329 mm |
Max.digging radius | 5343 mm |
Max.dumping height | 2716 mm |
Max.gradeability | 22° |
